The company Quantum Systems GmbH was founded in January 2015 and is specialized in the development and production of autonomous transition aircrafts for civilian use.
Our products combine reach and efficiency with the ability to vertically take off and land without additional equipment.
By means of the founding team’s diversity, Quantum-Systems manages to combine extensive experience and expertise from all relevant areas of unmanned aerial systems.

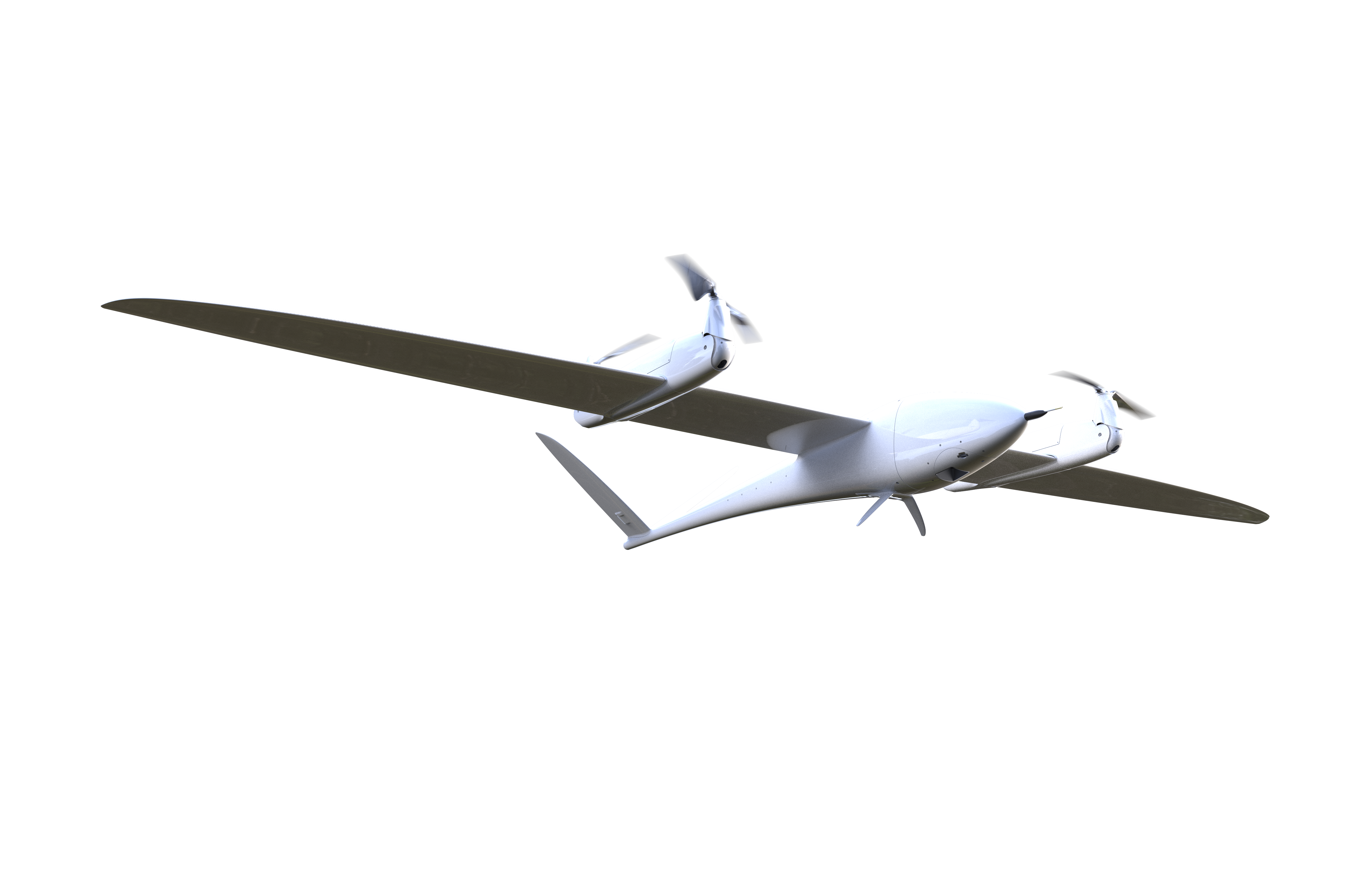

Tron F90+
The Tron F90+ is a professional and high-performing UAV that offers outstanding efficiency and elegance. The system has been designed to flexibly, quickly, and safely integrate different sensors in order to meet the needs of a variety of applications. The high quality standards of Quantum-Systems combined with the extremely simple operating concept and high aerodynamic efficiency make the Tron unique among all other existing drones. To meet these high demands, the Tron was designed from the outset as a fully-electric transition aircraft. Our transitioning technology combines long range and efficiency with the ability to vertically take off and land (VTOL) without additional equipment.
See More

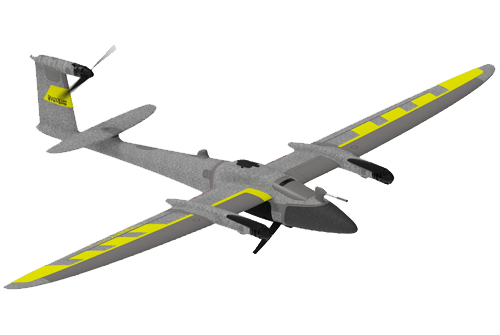

TRINITY F90+
The Trinity F90+ combines high efficiency, flexible mission capabilities, and a small, portable footprint. The result is the world’s most compact VTOL fixed-wing drone available today!.
See More

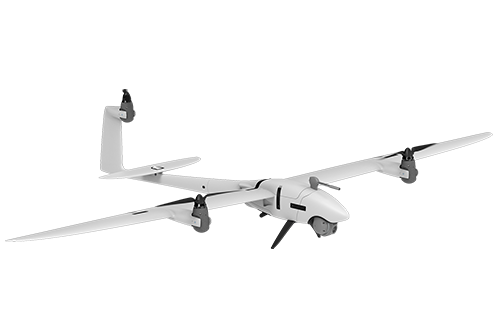

Vector
VECTOR – The 2in1 vertical take-off reconnaissance UAV Flexible and enduring, the Vector provides flight and surveillance characteristics to military and security forces that are exceeding performance of current tactical UAV platforms in service all over the world. It is a military grade UAV System built to last and bring capabilities to the battlefield not available as of today. The ability to operate in the most difficult terrain (VTOL) combined with extremely low noise emission (motor off silent mode) makes the Vector the perfect UAV for a wide range of military and security applications. A military encrypted mesh IP link sends video streams up to a range of 15+ km. A flight time of up to 120 minutes speaks for itself. All combined in a compact and robust electric VTOL UAV. The 2in1 System design opens up further applications with the “Scorpion” configuration – By removing the wings and attaching a separate set of copter arms a dedicated multi copter platform becomes available for an even wider variety of mission applications. Either use a VTOL fixed-wing or a conventional copter – in both cases you only need one system to train on and to deploy it on site.
See More

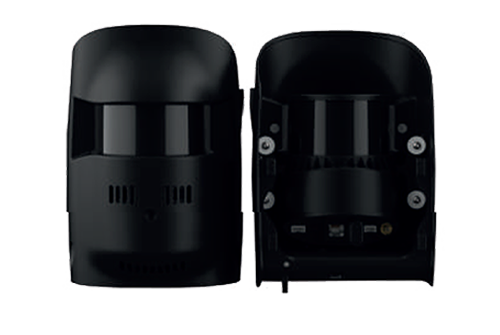

Qube 240
he Qube 240 payload is a geomatics grade LiDAR Scanner for the Trinity F90+ UAS and it endures up to 60 min of flight time with this combination. It is offered as a complete solution, all encompassed with YellowScan CloudStation Software pack, and license.
See More
Sony UMC + RedEdge-MX Double Paylaod
Thanks to the large payload capacity, a combination of a high-res RGB camera and a multispectral camera is available. This results in completely new possibilities that save time and money.
See More
MicaSense Altum Payload
ALTUM Integrates a radiometric thermal camera with five high-resolution narrow bands, producing advanced thermal, multispectral, and high-resolution imagery in one flight for advanced analytics..
See More

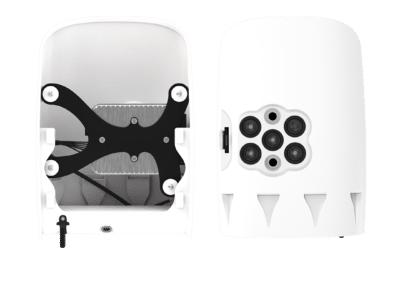

MicaSense RedEdge-MX Payload
The RedEdge-MX requires a light sensor (DLS2). This sensor has to be mounted on the top of the main body of the UAV. Each TrinityF90Plus can be retrofitted with this senor by the customer. A modified version can be ordered separately.
See More

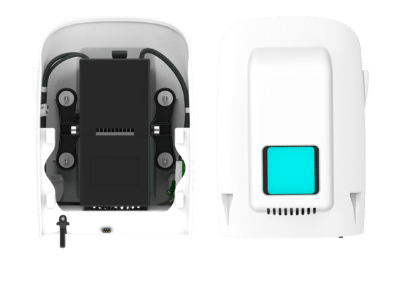

Sony UMC-R10C Payload
The Sony UMC-R10C 20.1MP camera is used throughout the mapping industry. This camera is ideal for capturing high-quality images to create maps or 3D models. This can be done even in low light conditions thanks to the large APS-C image sensor.
See More

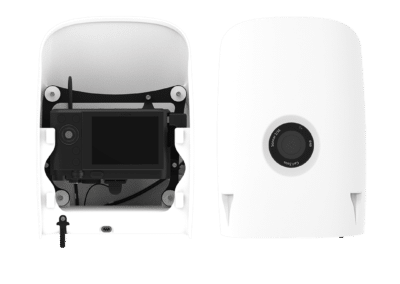

Sony RX1R II Payload
Thanks to the 35 mm CMOS sensor with 42.4 megapixels, the Sony RX1RII is ideal for all applications where the highest requirements are placed on the images. Especially in the field of DEM & orthophoto as well as high-resolution point clouds and detailed 3D models are a breeze with the images taken by the Sony RX1RII. GSD values in the range of 1.29cm/px @ 100m altitude are possible! All payloads are ready to fly! It takes just a few simple steps to switch between our extensive payload portfolio.
See More

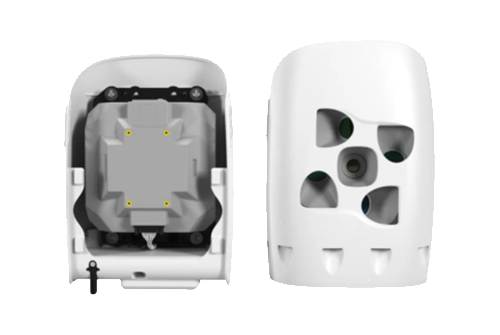

MicaSense Dual Camera System
World’s first fixed-wing UAV integration of the MicaSense Dual Camera System Producing aligned 10-band data is much more valuable than simply providing two separate 5-band maps. The MicaSense Dual Camera System Payload synchronizes capture of all 10 bands allowing the creation of multiple indices and new analytics. During processing, bands from either camera may be used interchangeably.
See More

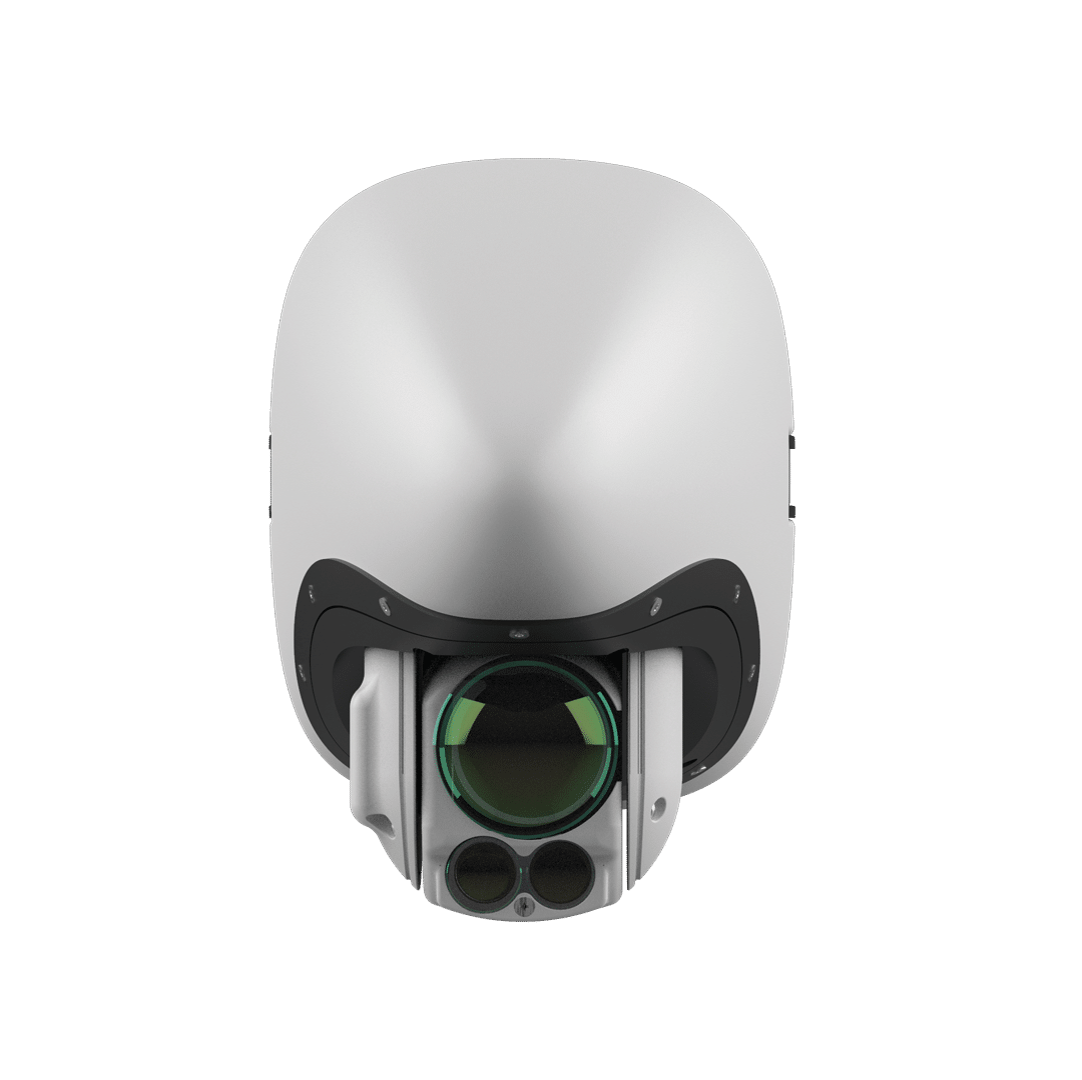

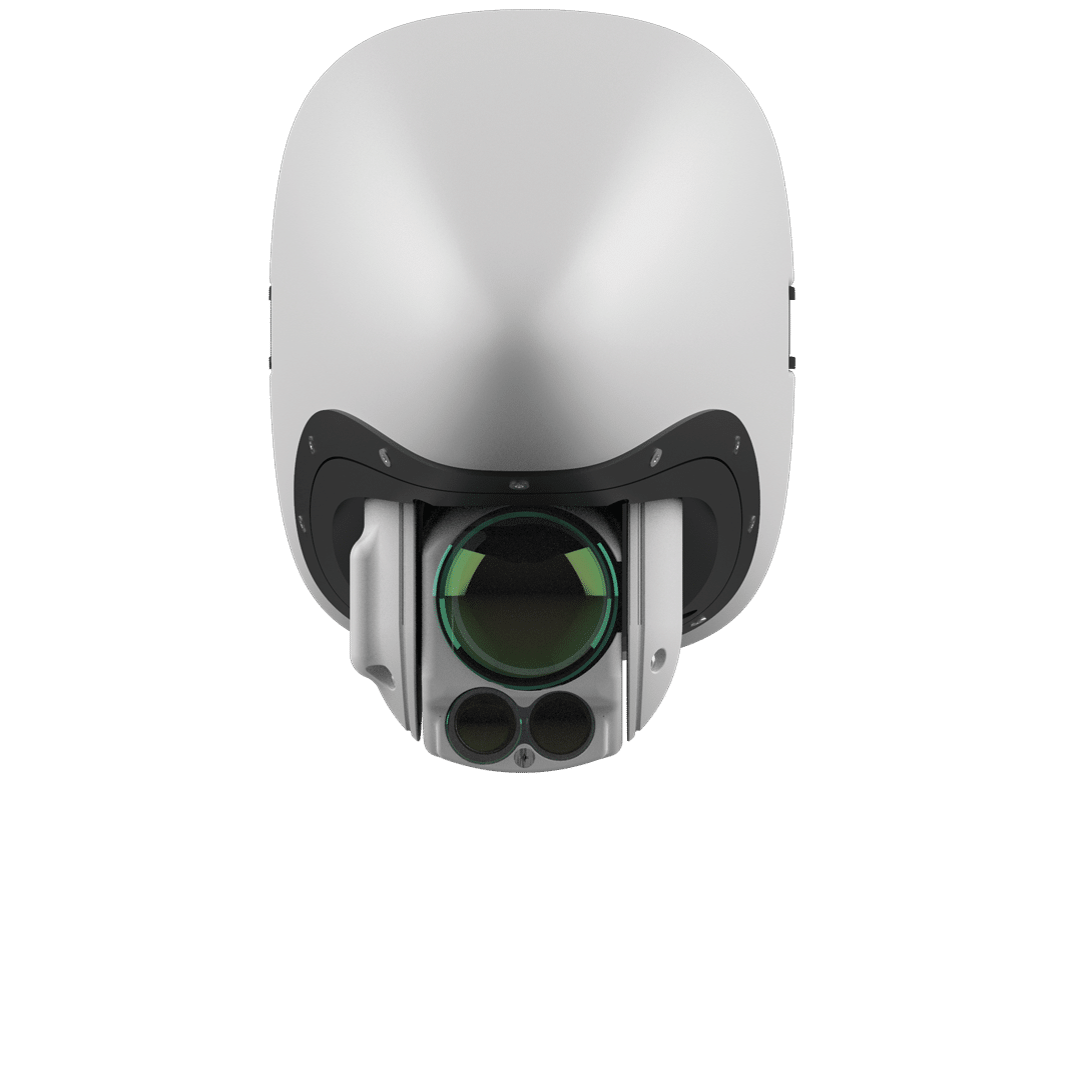

Nighthawk2
EO: • Zoom: 20x optical, 2x digital • Resolution: 1280 x 720 px IR: • Zoom: 4x digital • 1280 x 720 px • Data rate: 5 Mb/s (H264) • Power consumption: 7 W • Weight: 350 g / 0.8 lb • MISC: KLV-Stream, GeoLock, Image stabilization, Object tracking.
See More

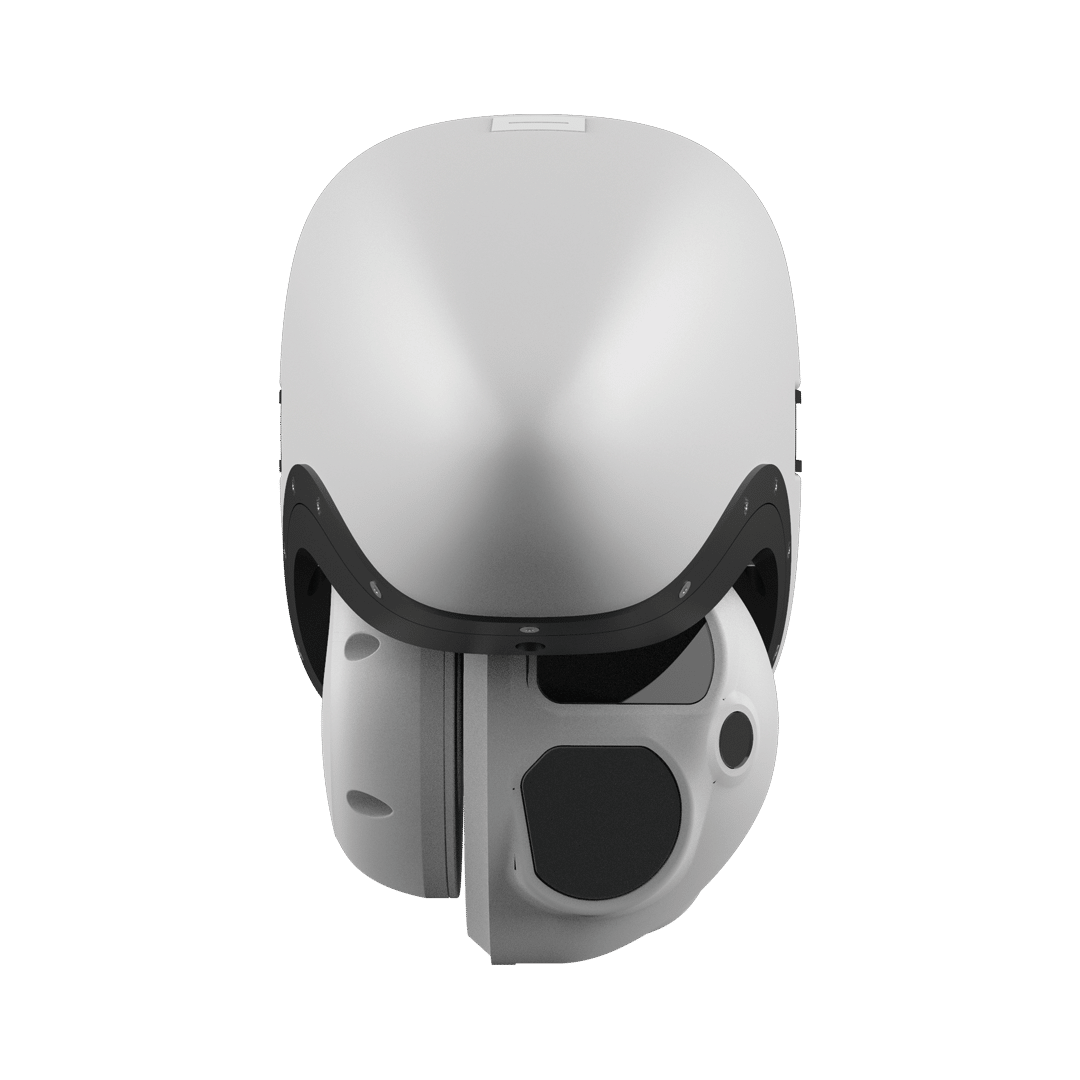

HD40-LV
EO: • Zoom: 10x optical, 2x digital • Resolution: 1280 x 720 px IR: • Zoom: 4x digital • 640x480 px • Data rate: 5 Mb/s (H264) • Power consumption: 15 W • Weight: 600 g / 1.3 lb • MISC: KLV-Stream, GeoLock, Image stabilization, Object tracking.
See More

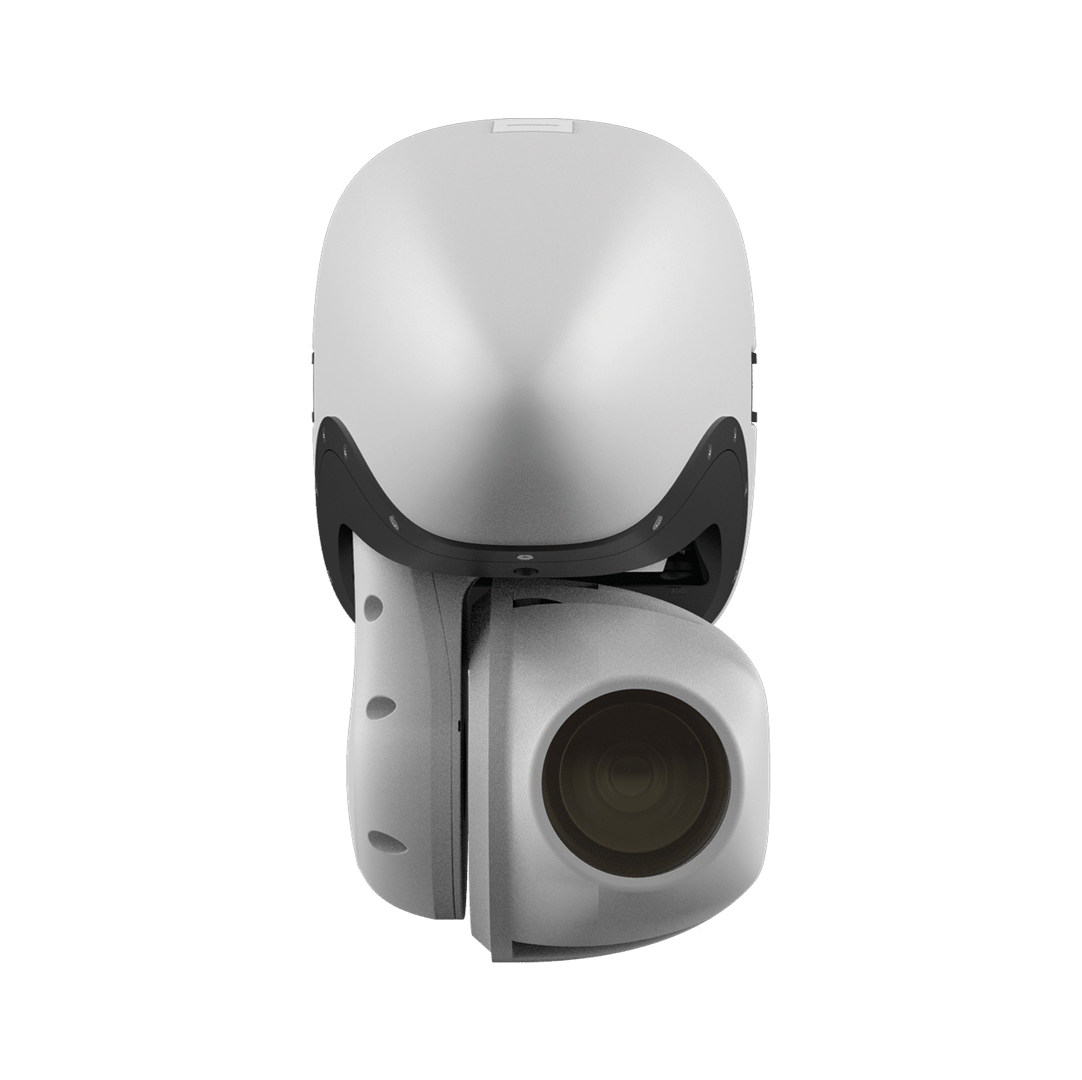

HD40-XV (Scorpion only)
EO: • Zoom: 30x optical, 2x digital • Resolution: 1280 x 720 px IR: • N/A • Data rate: 5 Mb/s (H264) • Power consumption: 20 W • Weight: 800 g / 1.7 lb • MISC: KLV-Stream, GeoLock, Image stabilization, Object tracking.
